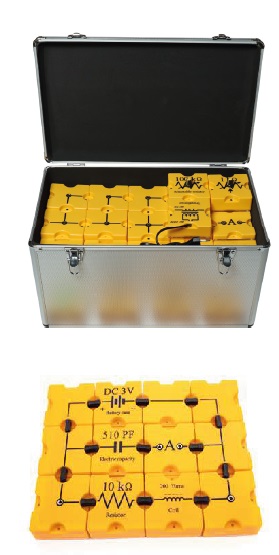

Demonstration Kit for Studying Electricity (Teacher) with Methodological Guide, including:
Connecting element – 50 pcs
Resistor, 1 Ohm
Resistor, 10 Ohm – 2 pcs
Resistor, 47 Ohm
Resistor, 100 Ohm – 2 pcs
Resistor, 470 Ohm
Resistor, 1 kOhm – 2 pcs
Resistor, 4.7 kOhm
Resistor, 10 kOhm
Resistor, 20 kOhm – 2 pcs
Resistor, 100 kOhm
Resistor, 1 MOhm
Variable resistor, 1 kOhm
Trimmer resistor, 1 kOhm
Variable resistor, 10 kOhm
Variable resistor, 100 kOhm
Fixed capacitor, 510 pF
Fixed capacitor, 0.001 µF
Fixed capacitor, 0.01 µF
Fixed capacitor, 0.1 µF
Polarized electrolytic capacitor, 1 µF
Polarized electrolytic capacitor, 4.7 µF
Polarized electrolytic capacitor, 10 µF
Polarized electrolytic capacitor, 47 µF
Polarized electrolytic capacitor, 100 µF
Polarized electrolytic capacitor, 470 µF
Rectifier diode 1N4001 – 3 pcs
Rectifier diode 1N914 – 3 pcs
Bipolar transistor, PNP type, 2N3906 – 3 pcs
Bipolar transistor, NPN type, 2N3904 – 3 pcs (corrected typo)
Coil, 200 turns
Two coils, 300 turns and 600 turns
Transformer: primary winding – 220 V AC; secondary winding – 6 V AC
DC motor, 3 V
Incandescent lamp, 2.5 V
Galvanic battery, 3 V DC
Speaker, 3 V
Straight conductor – 4 pcs
Straight conductor with terminal – 4 pcs
Terminals for connecting an ammeter – 2 pcs
Angled conductor – 4 pcs
Angled conductor with terminal – 4 pcs
T-shaped conductor connection – 4 pcs
T-shaped conductor connection with terminal – 4 pcs
X-shaped conductor connection – 2 pcs
X-shaped conductor connection with terminal – 2 pcs
Packing box
The set is accompanied by a user manual, a methodological guide for the teacher, and student materials available on the electronic platform.
Development of Key Skills:
Working with the kit promotes attention, logical and visual thinking, creativity, and collaboration skills. Students can complete tasks individually or in groups, developing independence and teamwork.
