Digital Microscope:

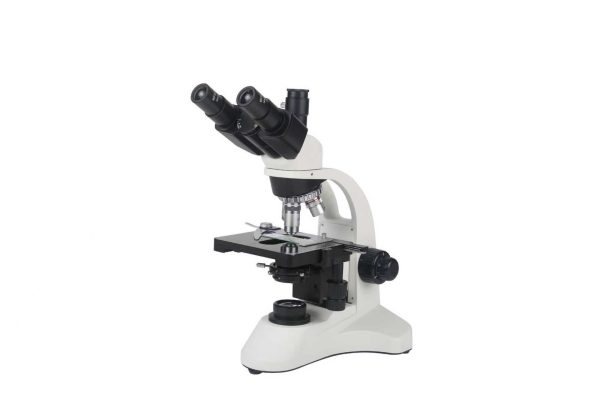

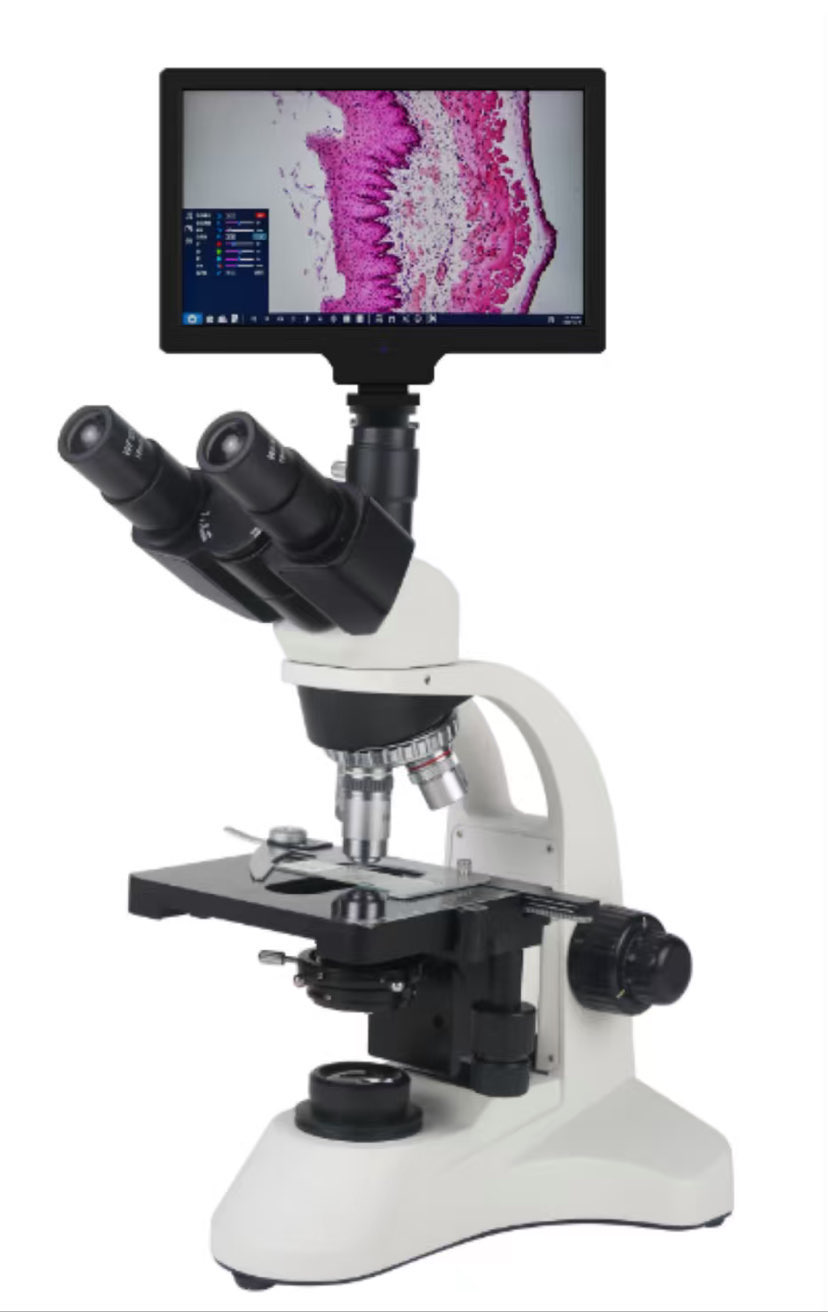

Dual-eyepiece TV three-way connector with 30-degree tilt and 360-degree rotation. Equipped with WF10X eyepieces (2 units), 195mm objective lens (4x/10x/40x/100x magnification), and a four-hole inward-tilt converter. Features acoustic coarse positioning with coaxial structure for coarse and fine focusing adjustments (coarse focus: 20mm, fine focus: 1.3mm). The 115×125mm double-layer mechanical platform offers a 72-32mm travel range. Includes an Abbe condenser with NA 1.25, 3W LED, cold light source, and adjustable brightness.

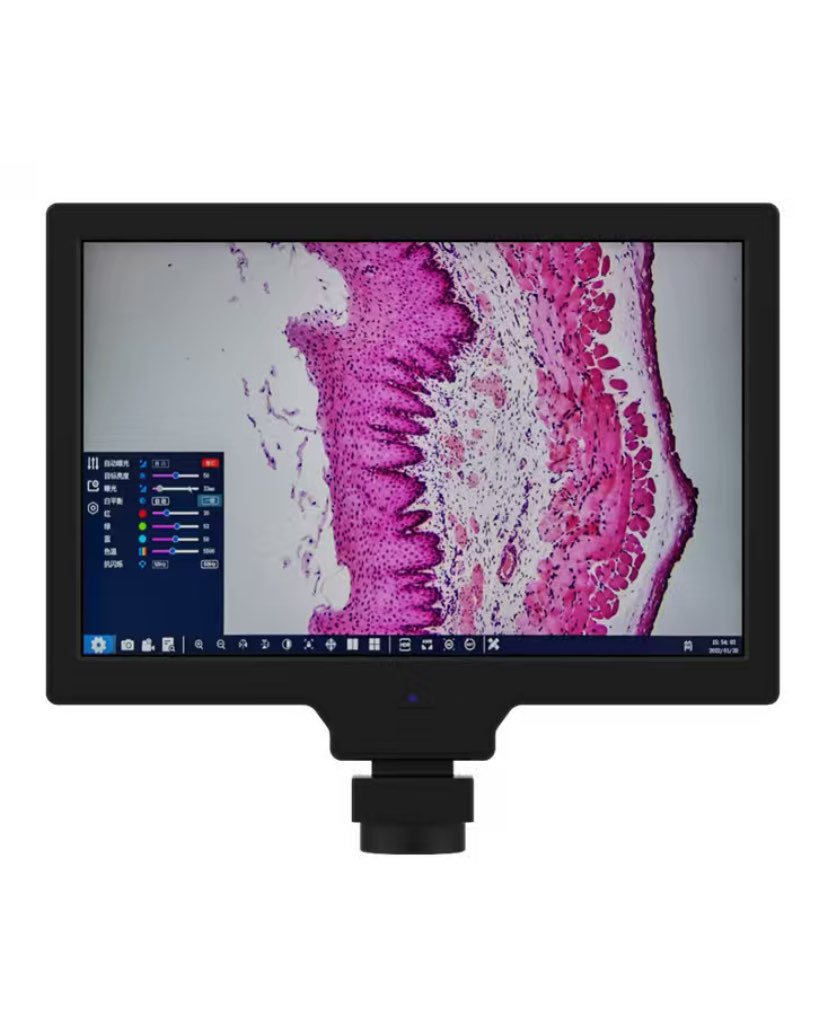

10.1″ screen, 1/2.8-inch sensor, 2.9×2.9μm resolution, 1920×1080@60FPS video recording at 30FPS. Adjustable parameters include contrast, saturation, brightness, sharpness, and noise reduction. Capable of taking photos, recording videos, previewing footage, mirror image display, crosshair calibration, dual/quad-screen comparison, freehand line drawing, weighted lines, horizontal lines, and straight-line measurement. Connects to computers via UVC/USB2.0 for output, HDMI output, 12V DC power supply, and supports mouse connection.
