Laser light source
Ultra short-throw ratio
WXGA 1280×800,
4000 Lumens
[divider height=”50″]
Ultra short-throw ratio
The ultra-short-throw projector eliminates disruptive shadows and annoying glare.
The projection light is generated by a laser, which has a lifetime of up to 20,000 hours, instead of a traditional lamp.
Remote control
Manage the projector remotely. Turn the projector on and off and read data from another location within the same network.
Plug & play
Instantly connect the projector to your computer or laptop. No drivers to be installed or configured.
Quick startup
The projector turns on and shuts off in seconds allowing you to get your show on the road without any delay.
Sealed laser unit
The laser unit is sealed in a closed dust-resistant housing.
Low power consumption
It consumes low power to reduce operating costs.
Mercury-free
The Laser projector has a sustainable design that is free of mercury.
[divider height=”50″]
Physical Parameter
Projection System: Laser
Native Resolution: 0.65″ S450 DC2, 1280×800
Brightness: 4000 Lumens
Contrast Ratio (Full on/off): 12000:1
Display Color: 30 Bits (1,037,000,000 colors)
Aspect Ratio: Native 16:10
Th row Ratio: 0.24:1(80″@43.1cm)
Image Size (Diagonal): 80″ ~150″
Zoom Ratio: fixed
Light Source Type: LD module
Life (Normal/Economic): 20000Hrs
Keystone Adjustment: “2D, Vertical & Horizontal ± 30 degrees
Auto Vertical”
Lens Shift: No
Projection Offset: 137.5%+/-5%
Resolution Support: VGA(640 x 480) to WUXGA(1920 x 1200)
HDTV Compatibility: 480i, 480p, 576i, 567p, 720p, 1080i, 1080p
Video Compatibility: “NTSC, PAL, SECAM, SDTV
(480i/576i), EDTV (480p/576p,
HDTV (720p, 1080i/p 60Hz)”
Horizontal Frequency: 15K~102KHz
Vertical Scan Rate: 23~120Hz
Focus Range: 80″~150″
Color Wheel Segment: RYGB
Color Wheel Speed: 2X
Color Gamut: TBD (Refer to “Picture Mode”)
ANSI Uniformity (Min.): -50%
JBMA Uniformity (Min): 70%
Defocus: 2
Flare: 3
Focus unbalance: No define
TV Distortion: <0.5%

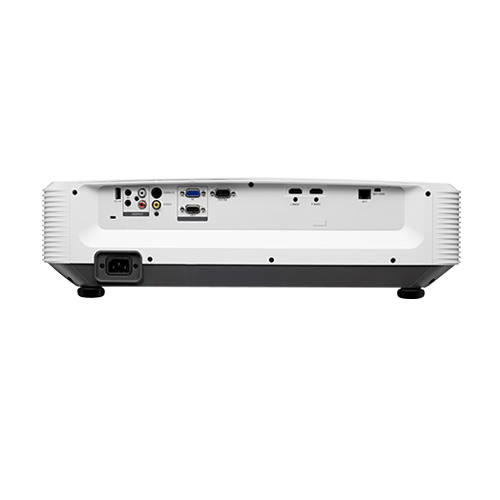

Interfaces
Computer in (D-sub 15pin): x1
Monitor out (D-sub 15pin): x1
HDMI: x2
Composite Video in (RCA): x 1
S-Video in (Mini DIN 4pin): x 1
Audio in (Mini Jack): x 1
Audio out (Mini Jack) x 1
Speaker 10W: x 1
RS232 (DB-9pin): x 1
IR x 1 (Front, facing user)
Supplementary Info.
Dimensions (WxHxD): 508.7 x 390.0x 144.5 mm
Weight: 10.6Kgw
Power Supply: AC 100 to 240 V, 50/60 Hz
Typical Power Consumption: ~ 380W
Stand-by Power Consumption: < 0.5W
Network work standby: N/A
Acoustic Noise (Typ./Eco.): TBD (30/ 28 dBA)
Operating Temperature: 0~35℃
ID color: White
Accessories
Carton: Yes
Remote Control w/ Battery: x 1
Power Cord (by region): x 1 (1.8M)
User Manual CD: x 1
Quick Start Guide: x 1
Warranty Card : x 1
