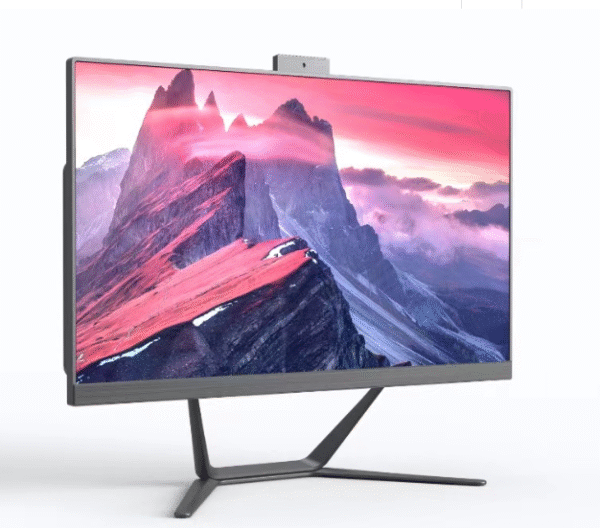

| Model | ZD-Y2402 | |
|
Screen
|
Screen size | 23.8″ |
| Screen type | Widescreen LCD display, WLED backlight, anti-glare coating | |
| Resolution | Full-HD resolution 1920*1080 | |
| Brightness | 250cd/m2 | |
| Viewing angle | 178°/178° | |
|
Mainboard
|
Panel type | MINI-ITX |
| Dimensions | 170*170mm | |
| Chipset | Intel I5-12450H processor | |
| Storage | 1 x M.2 2280 SATA & NVMe
1 x SATA Gen. 3 Port |
|
|
CPU
|
Model | i5-12450H |
| Type | Notebook | |
| Series | 12 Gen. Alder Lake | |
| Main frequency | 2.0GHz | |
| Turbo frequency | 4.4GHz | |
| Number of cores | Octa-core | |
| Threads | 12 threads | |
| Process technology | 10nm | |
| Level 3 cache | 18MB | |
| CPU power consumption | TDP-45W | |
|
Graphics
|
Type | CPU integrated |
| Video memory type | / | |
| Video memory bit width | / | |
| Graphics card power consumption | / | |
| Graphics card size | / | |
|
Memory
|
Memory capacity | 16GB |
| Memory type | Notebook | |
| Memory specifications | DDR4 | |
| Memory frequency | 2666MHz | |
| Operating voltage | 1.2V | |
| Product supported memory information | 2 x SO-DIMM DDR4 , Max. DDR4-3200 | |
|
Storage
|
SSD capacity and protocol | 512GB M.2 2280 NVMe SSD |
| HDD capacity and type | / | |
|
Connections
|
WIFI | Wireless LAN: 802.11ax/ac/a/b/g/n, M.2 interface, built-in antenna |
| Bluetooth | BT5.2 | |
| Wired network | Gigabit (10/100/1000) LAN | |
|
Others
|
Camera | 3MP upper frame with microphone |
| Appearance | Plastic back cover (black) + metal base (black) | |
| Radiator | Copper tube heat dissipation + Cooling fan | |
| Expansion | 1 x M.2 2230 expansion WIFI module | |
| Buttons | Power switch*1 | |
| Interface | Side: USB2.0*2, USB Type-C*1 | |
| Accessories | Bottom interface: DC*1, HDMI out*1, VGA (or COM) *1, USB3.0*4, RJ45*1, MIC*1, Audio out*1, | |
| Keyboard and mouse | Wired keyboard and mouse | |
| Power supply | 90W Adapter | |
| Accessories | Power cord, instruction manual, certificate of conformity | |
| Operating System | Windows 11 Professional Edition (Genuine activation) | |
| Environment | Working Temperature :0°C to 40°C
Storage Temperature: -20°C to 60°C Humidity: 20%-80%（temperature at 40°C） |
|
|
Physical Dimensions
|
Product Size (LxWxH） | 541*52.4*413mm |
| Net Weight | Approx. 5.5KG | |
| Packing Size (LxWxH） | 600*145*475mm | |
| Gross Weight | Approx. 6.5KG | |
|
Container Load
|
LCL | 40HQ: pcs 40GP: pcs 20GP: pcs |
| Pallet (1100MM*1100MM*120MM ) | 40HQ: pcs 40GP: pcs 20GP: pcs | |
