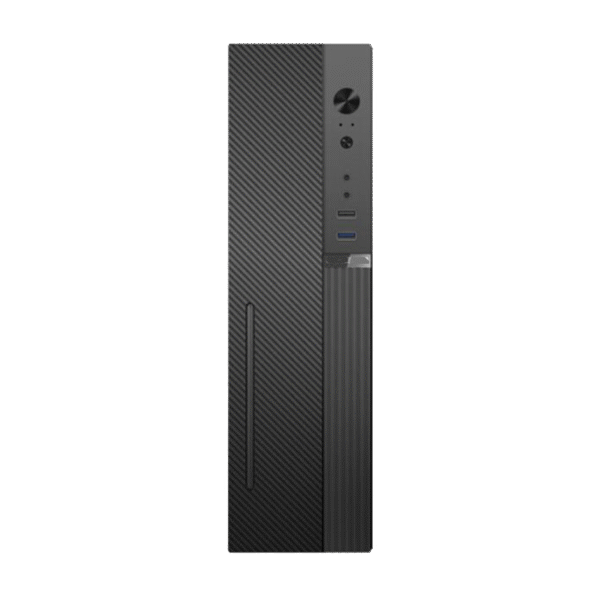

Desktop Mini LDS

---

Best Desktop Mini PC

Model: L2403-M, Part Number：2.12.03.010001

---

Technical specifications

Processor
Intel® Core™ i3-10100 Processor
4 cores;
8 threads;
3.6GHz base operating frequency;
4.3GHz maximum operating frequency;
8GT/S bus speed;
6MB cache;
65W (TPD)
Lithography: 14nm

RAM
Type: DDR4;
Capacity: 16GB;
Operating frequency: 2666MHz;
Expandability: up to 64GB;

Expansion slots
PCIe Gen3.0: 2 slots;
M.2 type storage: 1 slot type 22×80 for storage device;

Harddisk
Type: SSD;
Capacity: 256GB;

Graphic subsystem
Type: Integrated in the processor;
Intel® UHD Graphics 630
Resolution: 4096 x 2304 60Hz;
Video memory: use of shared standard memory;
Displays Supported: 3;

Security
Trusted Platform Module 2.0 chip;
TCG or CC EAL or FIPS 140-2 certification;
Standard Security lock slot

Audio
Type: Integrated audio controller;
Number of audio channels: Stereo;

Communications
Ethernet: Integrated Gigabit Ethernet controller;

Power supply
Type: Built-in computer;
Operating voltage: Complies with BDS – 230 +/- 10%, 50Hz +/- 0.5%;
Power: not less than 200W and not more than 300W;
Efficiency:  85%;

Keyboard
Type: USB connector, permanently engraved;
English and Bulgarian (BDS)

Mouse
Type: USB connector, two-button, Optical with scroll with computer

I/O Port
USB 3.2 Type-C x 1
USB 3.2 Type-A x 4
USB 2.0 Type-A x 4
Power Port: x 1
Audio output / input x 1 3.5 mm
Video output: HDMI + DisplayPort;
Ethernet port x 1 RJ-45;

Standards
RoHS, CE marks, ENERGY STAR®

OS
Windows 10 Pro Academic

Warranty
Period: 12 months

Others
Weight: 1.4 kg
Accessories:  Adapter, User Manual, Quick Start, Warranty Card
