Description

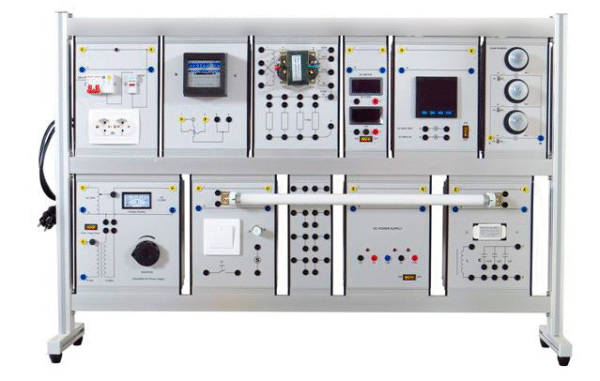

Structural Composition of the Complex
The complex consists of:
- Assembly Table: Constructed from a steel profile with an integrated worktable and a pull-out drawer for storing work tools.
- Additional Sets of Elements: Placed on the assembly field.
- Built-in Electrical Power Supply Module: Installed above the work surface.
- Aluminum Frame with Perforated Mounting Panel: Attached above the work surface.
Features of the Built-in Electrical Module
- Protected Sockets:
- Power Source 1~220V, 50Hz, 3 A: 2 pcs.
- Power Source 1–36 V, 50Hz, 3 A: 2 pcs.
- Power Supply 1~12 V, 50Hz, 3 A: 2 pcs.
- Regulated Power Source 2…30 V, 3 A: 1 pc.
Electrical Installation Complex
- Cable Laying: The laying of the cable is carried out in the cable channel.
- Load Variation: A gradual change in load is possible during the single-phase meter check.
- Replaceable Panel Functionality:
- Allows you to carry out the following laboratory work:
- Connecting and checking the operation of a single-phase electricity meter.
- Connecting and checking the operation of a three-phase electricity meter.
Components on the Front Panel
The front panel includes:
- Counter of Active Electrical Energy
- Meter of Active Electrical Energy
- 3-Position Switch
- Straight Cartridge E27
- Cable Channel
- Clamp Block
