Description
The automated laboratory complex is designed to carry out a wide range of theoretical, practical, and laboratory work on the study of static and dynamic processes of passenger car suspensions, the principles of their operation and modes of operation, as well as the formation of initial skills in car diagnostics, maintenance, and repair.
Overall dimensions: 2000×1650×1800 mm
1. Functional Introduction

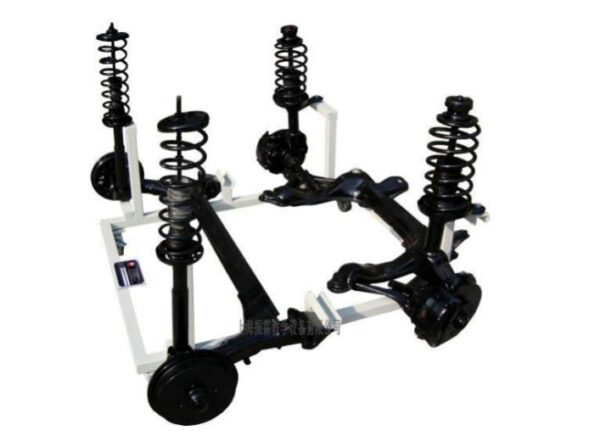

- The front and rear suspension disassembly and assembly training platform for automobiles adopts the front and rear suspension assembly (complete accessories, easy to disassemble and assemble), and is installed on a movable stand.
- The front and rear suspension disassembly and assembly training platform for automobiles is installed according to the original car layout, which is convenient for students to disassemble and assemble from different angles.
- The front and rear suspension disassembly and assembly training platform for automobiles adopts high-strength steel structure welding, and the surface is treated by spraying process. The bottom is equipped with self-locking casters, which is movable and convenient for teaching.
2. Technical specifications
- Equipment appearance: 1000×500×1100 mm (length×width×height)
- Steel pipe: 40×40×3 mm
- Universal casters:
- The front two universal casters with locking function
- The rear two universal casters
- Casters and the stand are fixed with M6*4 screws, which is convenient for equipment repair and maintenance.
- Casters: 60 mm × 50 mm (diameter × width)
- Caster support: 1.0T
