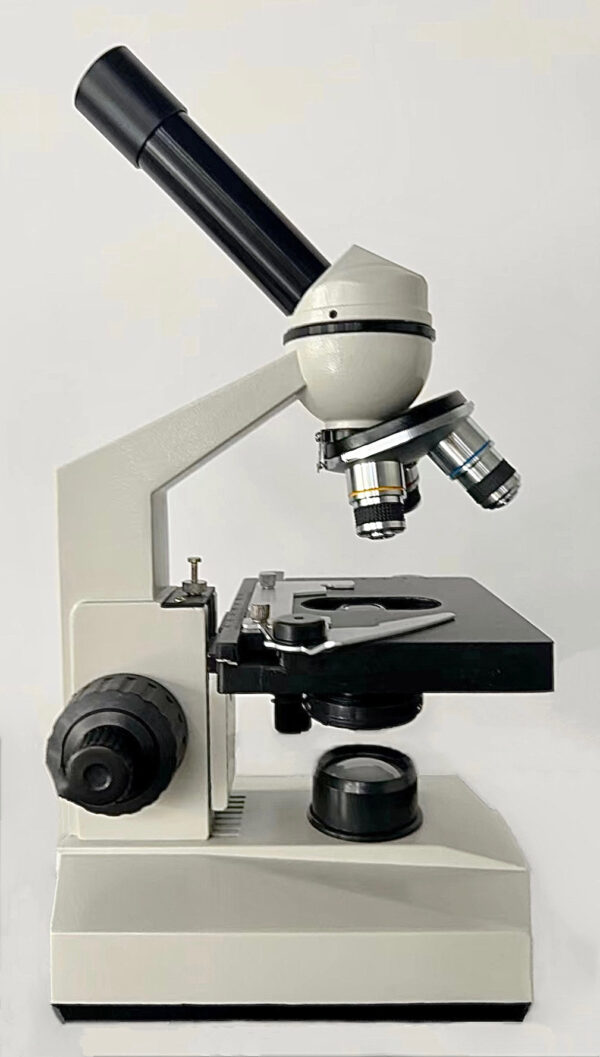

Labotrix Group Limited
Model: OBE 101
Labotrix Group Limited
Model: OBE 101
Classification: Biological
Purpose: Educational
Eyepiece: Wide-field plane-scope, WF10X
Optical Tube Length: 160mm
Microscopy Type: Bright Field
Lenses: Achromatic objectives, DIN standard, 45mm, including 4x, 10x, 40x(s)
Magnification: 40x-400x
Focusing Type: Monocular Head, Inclined at 45°, Rotatable up to 360°
Focusing: Coaxial, Two-way (Coarse and Fine)
Coaxial Coarse and Fine Focusing Mechanism: Adjustable up to 14mm
Illumination:Lower
Illumination with Lens Collector and Upper Illumination Lighting Type: LED Lamps with Smooth Brightness Adjustment
Power Supply: Mains 220V, Batteries
Stage: Double-layer Mechanical Stage, Dimensions 110mm*125mm, X-Y Moving Range: 60mm*20mm
Micrometric Calipers: Equipped with Vernier Scale
Condenser: ABBE type, N.A. 1.25, with Iris Diaphragm (2-30mm) and Filter (diameter at least 32mm)
