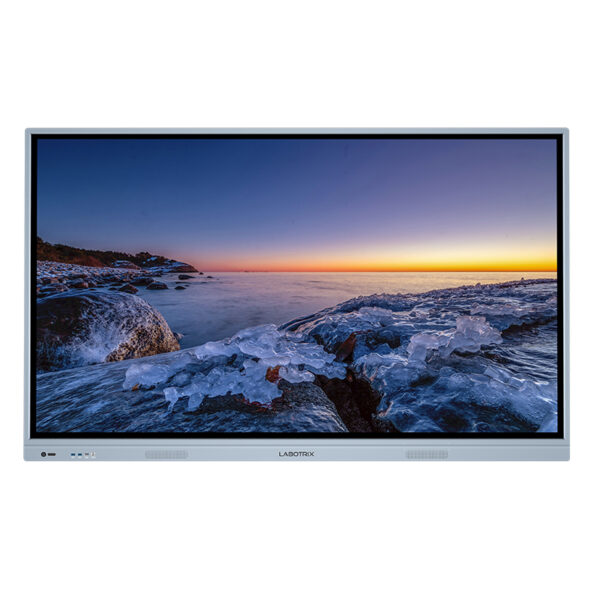

4K, UHD 3840 x 2160 LED Display
Multi-touch up to 20 touchpoint
Dual System windows & Android build-in
Wide range of sizes 65″/75″/85″/86″/98″
[Download not found][divider height=”70″]
[divider height=”50″]
[divider height=”50″]
Wide range of sizes
Labotrix Touch LTV-H Series comes in a wide range of sizes from 65″, 75″ to 86” to provide the right choice for any room, and ensures that everyone has excellent visibility, wherever seated.
Instant note-taking
Labotrix instant whiteboard software is integrated in the Android OS and allows you to make annotations and share them immediately without using other device.
Plug & play
Slide an OPS computer into the display and get started immediately.
Android on board
The Android OS has built-in apps such as a web browser, file explorer and documents editor. Browse the internet and open your MS Office or PDF files without running a computer.
Annotation overlay
Annotate over any word file, pdf file, image, site, app and save your notes in Labotrix Touch.
Infrared technology
This in-glass capacitive touch technology enables the screen surface to be thinner compared to general IR touch frame embedded to the outer layer of the panel. Meanwhile, it enables a more vivid and real writing experience. Touch writing can be easily detected even if dust or other objects are obstructing portions of the frame.
[divider height=”50″]
[divider height=”20″]
Display Panel
Size: 85inch
Screen Size:1872.0(H) x 1053.0(V)
Backlight: LED Back Light Display
Aspect Ratio: 16:09
Panel Resolution: 4K 3840 * 2160@60Hz
Brightness(nits): 350 cd/m²
Contrast Ratio: 4000 : 1 (Typ)
Viewing Angle: 178° / 178°
Response Time: 8ms
Touch System
Touch Technology: Infrared Touch
Touch tool: Finger, opaque object or passive stylus pen
Touchpoints: 20 points
Response time: 8 ms
Touch Resolution: 32768 x 32768
Light Resistance Capacity: 80K Lux
Interface drive: USB, plug and play
Glass: 4mm Tempered Anti-Glare Glass,Mohs’ hardness scale 7
Support OS: Android/Win7/Win8/Win10
Android
Android System: Android ™ 11.0
CPU: CPU Quad Core, A55 x 4, Processor 2.0GHz
RAM: 4G
Internal memory: 32G
Extended storage: Yes
Ambient light sensor Yes
Compatible video format: MKV, MPE4, AVI, FLV, WMV, ASF
Front buttons: POWER
Front interface: HDMI x 1 , USB 3.0 x 2, Touch USB x 1

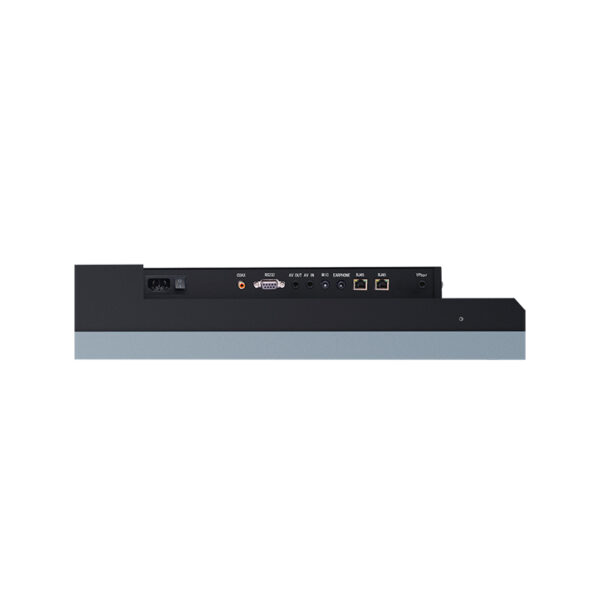

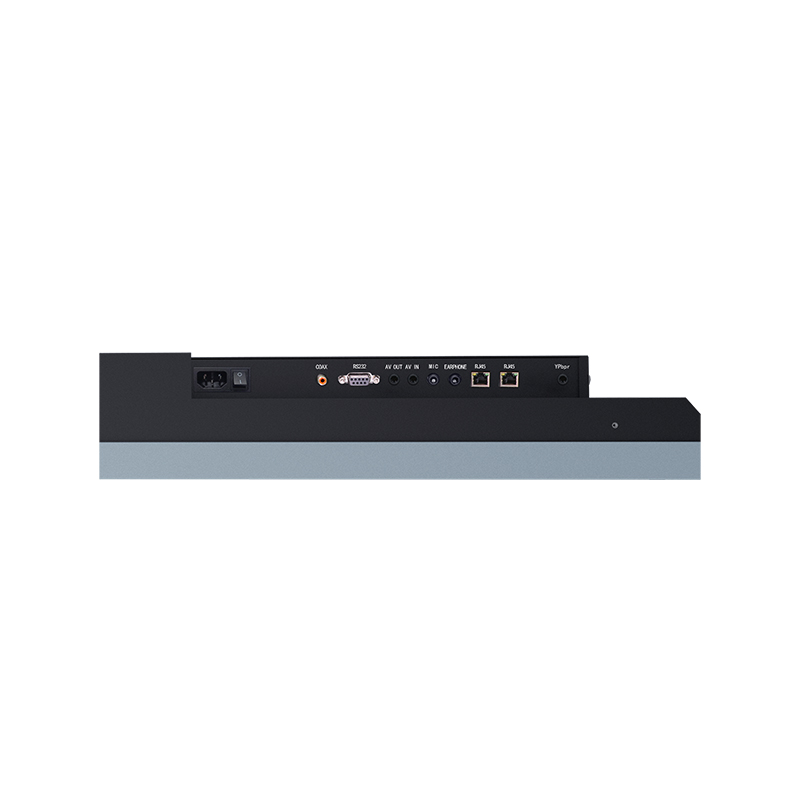

Rear interface: 2 x HDMI2.0, 2 x USB 2.0, 3 x USB 3.0, 1 x USB Type-C, 1 x Analog 2.0 audio line out (3.5 mm jack), 1 x RJ-45,
WI-FI, 1 x USB TOUCH, 1 x RS232, 1 x AV IN & 1 x AV OUT, 1 x MIC IN, 1 x YPBPR, 1 x COAX OUT, 1 x TF-CARD
Sound: 8Ω/10W x 2
Wireless connection: WiFi 2.4G Built-in, Bluetooth 5.0
Accessories
Quality certificate / warranty card, Remote controller x 1 , passive stylus pen x 3, power cable 3m x 1 , WiFi antenna x 3, Wall-mount kit x 1
Working Environment
Power consumption 370 W during operation / 0.5 W in standby mode Operating conditions
Operating temperature 0° but 40°C
Storage temperature -15°, but 55°C
Working humidity 20%, but 80% humidity is non-condensing
Storage humidity 20% but 90% humidity without condensation
Overall Dimensions 1962.2 (L) x1194.1 (H) x 100.3 (W) mm
Package dimensions 2095 (L) x1 320 (H) x230 (W) mm
Net Weight: 74.2 kgs
Package weight: 91 kgs
OPS Computer: (Optional)
CPU: Intel i7-1 1 65G7, 2.8GHz processor
RAM 16G DDR4
Hard Disk: SSD 1TB
Graphics card integration
WiFi Yes
Bluetooth Optional
I/O Port
5 x USB3.2 Type-A
1 x USB2.0 Type-A
1 x RJ45 10/100/1000M
1 x HDMI 2.0 out
1 x DP1.4 out
1 x TYPE-C out (Full function)
1 x 3.5mm Line out
1 x 3.5mm Mic in
1 x WIFI (Supporting wifi-6)
1 x Power
1 x Recover
1 x Power LED
1 x HDD/SSD LED
Mirro-casting Device (Optional)
Function Miracast, Dlna, AirPlay / AirPlay mirror
Wireless Connection WIFI 802.11 b/g/n ac (2T2R)
Supported OS Android 4.1 Afterward; IOS 6.0 Afterward; Win 7 / 8.1 / 10 (Win7 Require Driver Software)
Supported Resolution 720 / 1080 P
The interactive flat panel comes with the “Interactive teaching software”.
Software Parameters:
Licensed Interactive Dashboard software (interface) in English, other languages are available upon request. The software is designed to work with an interactive dashboard, and includes whiteboard tools, a driver, and an interactive application program. Interactive panel software: Operating modes: control (mouse), annotation, full screen, window, and transparent layer. Prepare and save lessons: rotate, move, and resize objects, including adding comments and creating screen snapshots; progressively reproduce actions on objects; automatic recognition and optimization of geometric shapes and polygons; adding hyperlinks to objects; making objects transparent; inserting templates and images as backgrounds and using a gallery; organizing pages; moving objects from page to page
attach files; save files in various formats (for example, PDF or HTML); save pages as separate image files (for example, JPEG or GIF); customize the grid on the page; insert Adobe Flash animation files from the gallery and add your own Flash files; a wide selection of drawing tools that differ in connection type, writing style, type of dotted lines, etc.; Display information with shadow and highlight effects. Curtain, spotlight, magnifier for magnifying individual areas. Access to most applications via the program control panel. Customize the palette of floating tools. Virtual tools for precise geometric operations: compasses, rulers, and protractors. Enter text from the on-screen keyboard. Automatic export to the Office format, to the website, automatic sending by e-mail.
