I. Working principle
The principle of the blood pressure sensor is based on pressure measurement technology. When the sensor comes into contact with the skin, the sensing element of the sensor will be affected by external pressure, thereby generating a corresponding electrical signal. These electrical signals are processed by the circuit inside the sensor and converted into blood pressure measurement results.
II. Specifications
Measuring range: 0~300mmHg
Resolution: 0.05mmHg
Accuracy: ±3mmHg

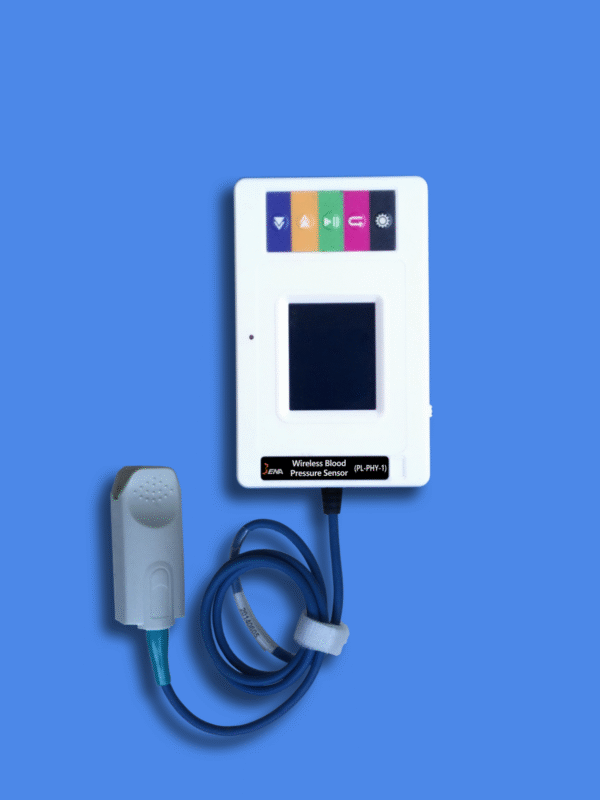

III. Structure and function
1. The sensor terminal comes with a 1.8-inch color LCD screen.
2. The sensor terminal is equipped with 5 function buttons. The operation interface is simple and convenient.
3. The sensor terminal supports high-speed USB data channel, which enables high speed transmission to the datalogger.
4. The sensor terminal supports wireless communication with experimental terminals.
5. The sensor terminal has a built-in removable battery with a large capacity.
6. The sensor terminal is designed with a hidden buckle sensor interface to support combined experiments with other sensors.
7. The sensor terminal has designed a fixation spot to get it fixed on the iron frame conveniently and combined with traditional lab equipment for experiments.
8. The sensor terminal supports the latest operating systems, such as iOS, Android, windows operating systems, etc.
V. Typical applications
Experiments such as measuring blood pressure.
V. Caution
This product is suitable for educational use only and is not suitable for industrial, medical, research, or commercial applications.
VI. Usage Tips
1. Use special software to conduct experiments.
