Type: LST-210

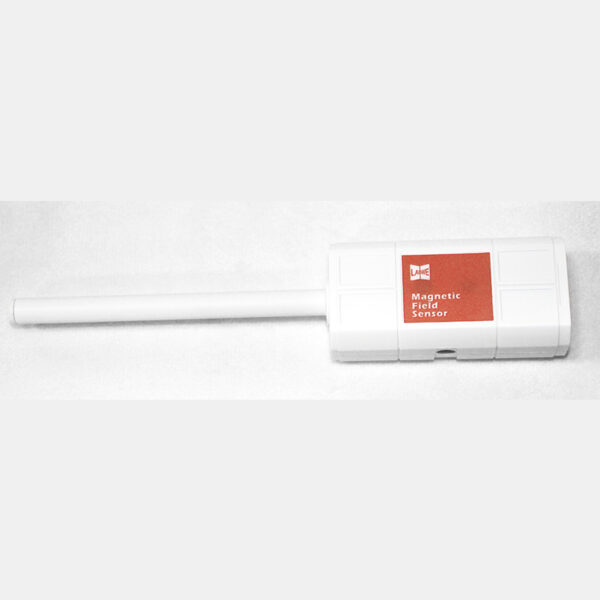

The sensor is designed to measure the magnetic field induction. The magnetic field sensor is used to carry out typical experiments: study of the magnetic field of a permanent magnet; measurement of the axial magnetic field of the energized solenoid; measurement of the magnetic field of a live wire; measurement of the magnetic field of the Helmholtz coil. The sensor meets the following parameters: 1. Measurement range: -0.12T~+0.12T.
2. Resolution: 0.01mT.
3. Measuring frequency not less than 100 Hz
The sensor is compatible with data loggers, connection via RJ45 interface.
