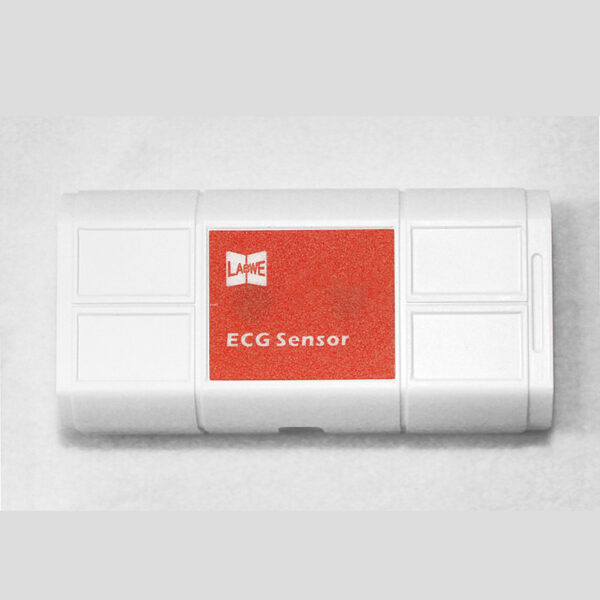

ECG sensor (electrocardiogram)

The sensor is designed to study the bioelectrical activity of the heart. The ECG sensor is used to monitor the electrical energy produced by the heartbeat and, using two wires, measure the change in electrical energy and converts it into a basic signal. This change in energy should be displayed in graphical form, an electrocardiogram. The sensors correspond to the following parameters:
1. Measuring range: 0 ~ 5mV
2. Resolution: 5 μV.
The sensor is compatible with data loggers, connection via RJ45 interface.
