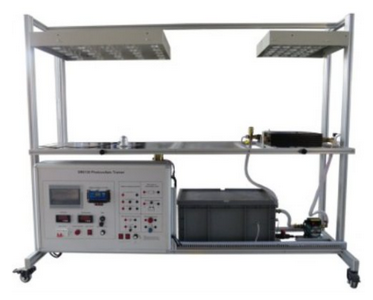

Laboratory Stand “Photovoltaic Trainer”
$7,210.00
Simulates the process of solar power generation, offering students an intuitive understanding of photovoltaic systems. Vital for training in renewable energy technologies.
Specification
- Functional demonstration model of a solar thermal system
- Lighting unit with 25 halogen bulbs
- Spacing and inclination adjustable collector
- 2 replaceable absorbers with different coatings
- Solar circuit with pump and variable flow
- Hot water storage tank with tube coil as heat exchanger and electrical auxiliary heater
- Sensors detect temperature and illuminance
- Software for data acquisition via USB under Windows 7, 8.1, 10
Technical data
- Flat collector:
- Absorbing surface: 320×330 mm
- Inclination angle: 0…60°
- Lighting unit:
- Lamp field: 25× 50W
- Pump:
- Adjustable flow: 0…24 L/h
- Measuring ranges:
- Temperature: 4x 0…100°C
- Flow rate: 0…30 L/h
- Illuminance: 0…3 kW/m²
- Power supply:
- 230V, 50Hz, 1 phase
- 230V, 60Hz, 1 phase
- 230V, 60Hz, 3 phases
- UL/CSA optional
Dimensions and weight
- Size (L×W×H): 1840×800×1500 mm
- Weight: approx. 167 kg
Battery charge controller
- Battery: deep cycle, sealed lead acid 110 Amp hour
