Laboratory Stand “Transformers”
January 8, 2025
Laboratory Stand “Installation of Energy Metering Devices”
$3,490.00

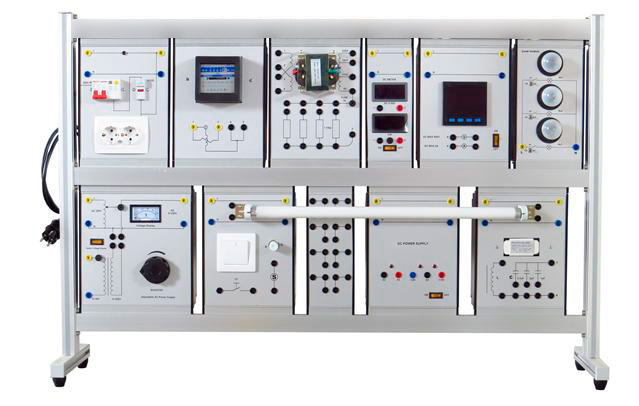

The “Installation of Energy Metering Devices” stand is designed to teach the correct installation and calibration of energy meters. It allows users to understand the principles of energy measurement and ensure accurate billing.
Structural Composition of the Complex
The complex consists of:
- Assembly Table: Constructed from a steel profile with an integrated worktable and a pull-out drawer for storing work tools.
- Additional Sets of Elements: Placed on the assembly field.
- Built-in Electrical Power Supply Module: Installed above the work surface.
- Aluminum Frame with Perforated Mounting Panel: Attached above the work surface.
Features of the Built-in Electrical Module
- Protected Sockets:
- Power Source 1~220V, 50Hz, 3 A: 2 pcs.
- Power Source 1–36 V, 50Hz, 3 A: 2 pcs.
- Power Supply 1~12 V, 50Hz, 3 A: 2 pcs.
- Regulated Power Source 2…30 V, 3 A: 1 pc.
Electrical Installation Complex
- Cable Laying: The laying of the cable is carried out in the cable channel.
- Load Variation: A gradual change in load is possible during the single-phase meter check.
- Replaceable Panel Functionality:
- Allows you to carry out the following laboratory work:
- Connecting and checking the operation of a single-phase electricity meter.
- Connecting and checking the operation of a three-phase electricity meter.
- Allows you to carry out the following laboratory work:
Components on the Front Panel
The front panel includes:
- Counter of Active Electrical Energy
- Meter of Active Electrical Energy
- 3-Position Switch
- Straight Cartridge E27
- Cable Channel
- Clamp Block
